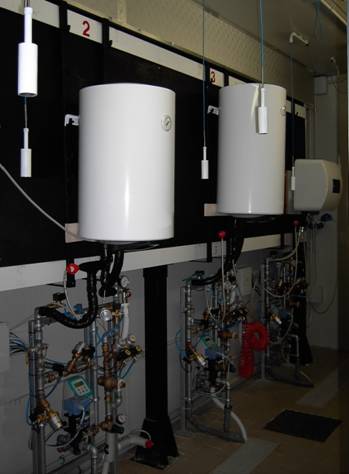

Construction of a climatic test chamber for electric water heaters for certification according to the European normative.

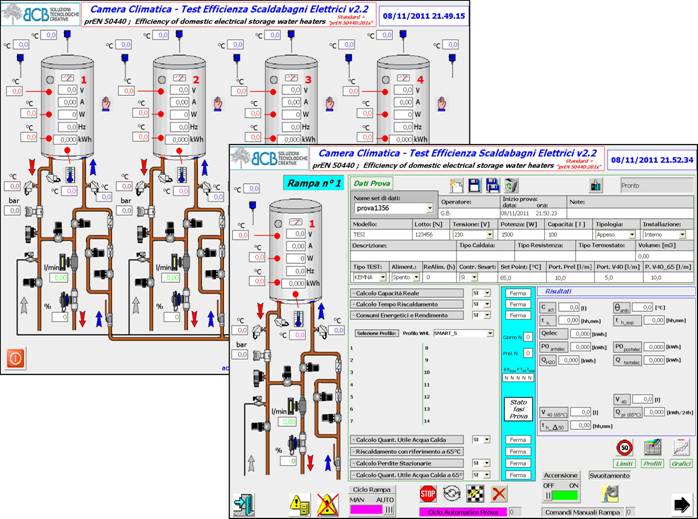

The testing system is composed of a PLC logic-based central controller coordinated by a personal computer; it is managed by three control software applications in communication via Ethernet.

The choice of this architecture was determined by the necessity for a solid and reliable operation combined with the capacity to store large quantities of data for the entire duration of the testing. Testing duration can vary from 5 to 15 days for 56 I/O analogue in addition to 80 I/O digital and four serial ports to connect to the product’s electronic board.

The PLC deals with managing the measurement systems and the command of the actuators needed to recreate the testing conditions required by the normative. The PC collects and organizes all the field data in an archive, from which they will be subsequently extrapolated to carry out the necessary calculations and evaluations.
