The simulation of a product’s life cycle is a vital aspect for the R&D sector. Thanks to experience acquired from designing testing systems, BCB has developed an accelerated life testing system with a modular architecture which can easily increment the number of testing stations during increased productivity. The management software was developed to be adaptable to different product types with a user-friendly interface. It is possible to perform three different types of tests for a total duration of the single trial equal to 180 days. The total analogue size results are 180 I/O, in addition to 80 I/O digital with an acquisition frequency of 1Hz. Ten serial ports to connect to the product’s electronic board are also managed, with an acquisition frequency of 0.2Hz in continuous operation for a reading of 40 parameters each. All the data is saved in a database to be subsequently extrapolated and analysed.

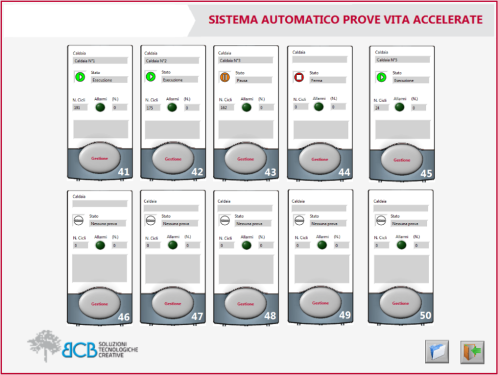

vita1

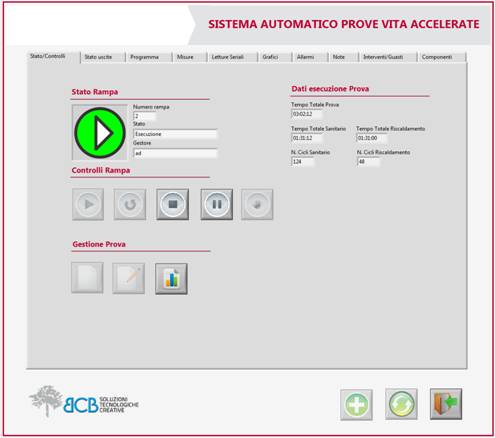

vita2
